Engineered for high performance, structural reliability, and sub-micron positioning accuracy.
An Industrial Whitepaper on Heavy-Duty Rigidity, High-Speed Precision, and OEM Global Sourcing Dynamics
In modern industrial manufacturing, the demand for processing massive, complex structural components with micro-level precision has positioned the Double Column VMC (Vertical Machining Center), also commonly known as a gantry machining center, as a foundational pillar. Unlike traditional single-column C-frame machining centers that face structural limitations in load capacities and structural deformation under heavy axial forces, the double column architecture distributes load forces symmetrically across a closed-loop frame. This fundamental structural integrity minimizes overhang and mitigates the thermal and mechanical displacements associated with heavy milling, boring, and drilling operations.
SEO Search Intent Insight: Leading global manufacturers are moving away from standard catalog purchases toward OEM customized double column VMC platforms. The driving metric is no longer just machine cost, but the total cost of ownership (TCO), dynamic accuracy preservation over a decade, and real-time integration into Industry 4.0 production environments.
From aerospace structural frames to automotive press dies, turbine housings, and large semiconductor manufacturing equipment chambers, the Double Column VMC is the machine tool architecture of choice. Leveraging advanced Finite Element Analysis (FEA), modern double column structures are engineered with optimized ribbing, box-in-box configurations, and thermal compensation algorithms that allow them to handle extreme cutting loads while maintaining positioning accuracy within several microns.
Why double column structures outperform traditional machining systems in heavy-duty applications.
The dual-column layout ensures thermal deformation is symmetrical. Standard temperature fluctuations occur uniformly across both support structures, maintaining the center line of the spindle in parallel alignment to the vertical axis, preventing skewing.
With the crossbeam firmly supported on both sides, the tool spindle carrier experiences zero cantilevering deflection, regardless of travel distance across the horizontal cross-axis. This results in superior surface finish values (Ra < 0.4 μm).
Supported by a massive, one-piece cast-iron base, the machine worktable handles workpieces weighing up to 20 metric tons without experiencing structural deflection or dynamic inertia problems during rapid axis reversals.
Established in 2004, Zhongshan Nuoxin Intelligent Equipment Co., Ltd. has developed into a premier national high-tech enterprise. Over the past 20 years, we have specialized in the research, development, and high-precision production of CNC machining centers, turning-milling multitasking machines, and slant bed CNC lathes.

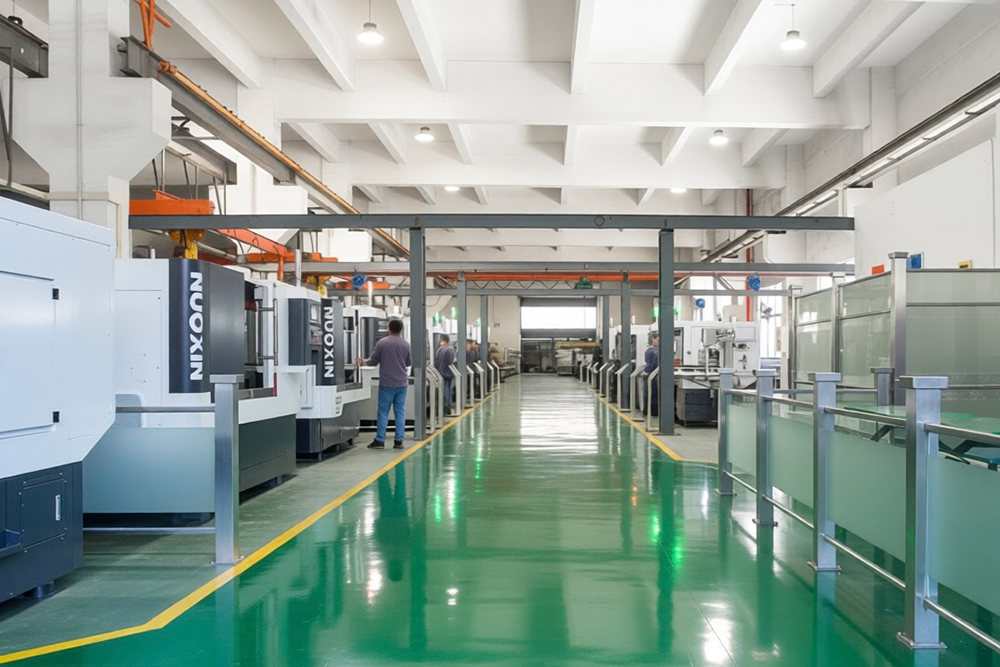

Located in the dynamic Industrial Development Zone of Zhongshan City, Guangdong Province, our facility covers a self-owned manufacturing area of over 20,000 square meters. We operate standardized assembly lines, maintain rigorous climate-controlled testing areas, and implement an ISO 9001 and ISO 14001 certified quality control framework to guarantee that every piece of machinery shipped meets strict performance specifications.
Our commitment to technical innovation has resulted in multiple proprietary design patents and utility model recognitions. We do not just build machine tools; we collaborate closely with global engineering teams to provide tailored processing strategies, system toolpath optimization, and on-site operation training.
How industries around the globe deploy double column VMCs to address unique regional production challenges.
In regions with rigorous aerospace requirements like the US, Canada, France, and Germany, double column VMCs are used to mill monolithic structural parts from solid aluminum forgings and high-strength titanium alloys. Components such as bulkheads, wing spars, and landing gear housings require massive material removal rates combined with extremely tight geometric tolerances. In these scenarios, the thermal stability of our double column machines prevents structural errors caused by heat accumulation during continuous multi-hour cycles.
With the rapid transition toward Electric Vehicles (EVs), automotive manufacturers in manufacturing hubs like Mexico, China, and Japan require large stamping dies and high-pressure casting molds. The machining of these dies demands sustained 3D contouring precision over 48 to 72 hours of uninterrupted cutting. A Nuoxin Double Column VMC configured with high-torque direct-drive or gear-driven spindles delivers the roughing power to strip raw material quickly, while the rigidity of the dual-beam prevents micro-vibrations, yielding a high-quality surface finish that minimizes manual polishing time.
Wind power gearboxes, massive turbine rotor hubs, and steam turbine casings require heavy boring and deep-cavity milling. Our double column VMC platforms feature high-thrust axes driven by large-diameter, pre-tensioned ball screws and heavy-duty roller linear guides, allowing operators to position workpieces weighing several tons with high mechanical repeatability.
Operating from Zhongshan within the Guangdong-Hong Kong-Macao Greater Bay Area (GBA) gives Zhongshan Nuoxin Intelligent Equipment Co., Ltd. a distinct strategic advantage. The GBA is the world's most concentrated precision manufacturing cluster. This localized proximity to high-grade Meehanite casting foundries, precision bearing suppliers, and advanced controller companies allows us to compress product development timelines and optimize manufacturing costs.
Our proximity to major deep-water ports (Guangzhou, Shenzhen, Hong Kong) ensures seamless shipping logistics and reliable delivery timelines for large-scale industrial machinery. The integration of local component supply networks and streamlined assembly processes allows us to offer OEM double column vertical machining centers at competitive prices without compromising on technical quality or performance specifications.
Additionally, we maintain a complete safety stock of key components, including precision linear guideways, high-grade spindles, and advanced controller systems. This stock buffering insulates our production runs from global supply chain disruptions, allowing us to maintain predictable delivery timelines for critical OEM machinery orders.
Exploring how AI integration, smart sensing, and sustainable design will shape the next generation of double column machining.
Integration of fiber-optic temperature sensors throughout the casting frame and columns. AI algorithms dynamically calculate displacement variables and apply real-time compensation coordinates to the CNC, maintaining precision down to ±2μm under varying ambient temperatures.
Deploying edge-computing vibration sensors directly on the spindle cartridge. The system monitors vibration signatures in real-time, warning operators of bearing wear or cutting tool imbalance before tool breakage occurs, minimizing unexpected downtime.
Adopting high-efficiency regenerative drive systems that capture kinetic deceleration energy and return it to the electrical grid. Incorporating oil-mist cooling and minimal quantity lubrication (MQL) systems to reduce fluid consumption by up to 75%.
Ensuring smooth installation, regional regulatory alignment, and reliable post-sale technical support.
Exporting precision heavy machinery requires strict alignment with target market engineering standards. Every OEM Double Column VMC platform we export can be customized to comply with regional safety frameworks, including the European Union's CE Directives, US OSHA/ANSI standards, and Canadian CSA requirements. This compliance includes custom safety enclosures, integrated interlock doors, dual-channel emergency stop circuits, and certified electrical cabinets built to withstand demanding industrial environments.
We recognize that machine downtime represents a major bottleneck for modern factories. Through our network of international distributors and regional service center engineers, Nuoxin provides localized installation, calibration, and commissioning services. Utilizing advanced laser interferometers and ballbar testing equipment, our technicians verify dynamic tracking and geometric alignment on your factory floor, ensuring your machine delivers high accuracy from day one.
Answers to common technical, logistics, and capabilities questions from global engineering teams.
Explore our comprehensive industrial catalog, designed to meet diverse manufacturing needs.
Adhering to our core operating philosophy of "honesty, responsibility, innovation, and win-win", Zhongshan Nuoxin Intelligent Equipment Co., Ltd. is committed to helping our customers improve their processing efficiencies. We provide continuous technical support, detailed machinery configurations, and thorough documentation for every custom and standard CNC machine we deliver.
Whether you require a custom double column vertical machining center configuration or technical support for complex turning-milling processes, our experienced engineering and customer service teams are ready to support your project.
We welcome you to visit our 20,000-square-meter manufacturing facility in Guangdong Province to see our assembly and quality control processes first-hand. Contact us today to discuss your technical specifications and request a detailed project quote.
