Introducing our advanced CNC machining equipment, designed with a robust modular configuration that integrates high-quality components from global leading suppliers. This ensures unmatched machining precision and long-term stability for your factory operations. The core of the CNC machine features the renowned Taiwanese SYNTEC system, recognized for its user-friendly Human-Machine Interface (HMI) and exceptional expansion capabilities, ensuring it meets the complex programming requirements of modern manufacturing while promoting high-efficiency production.

,

Our spindle unit is crafted with precision using domestic manufacturing techniques and is supported by original Japanese P4-class ultra-precision bearings. This guarantees outstanding rigidity and thermal management, even at high rotational speeds. The spindle drive system employs a high-performance domestic servo motor and drive, providing quick response times, energy efficiency, and smooth operational stability.

,

Precision is at the heart of our design, with X and Z feed axes driven by reliable Japanese Yaskawa servo motors and drives. This setup ensures seamless trajectory control and dynamic responsiveness. We utilize Taiwanese PMI or HIWIN C3-class precision ball screws in our transmission system, paired with original Japanese NSK precision bearings to minimize feed errors and backlash. Pâ…¡-grade high-precision linear guideways from top-tier suppliers further enhance rigidity and wear resistance.

,

Our machine rests on a high-strength cast iron foundation that has undergone extensive aging treatment for superior vibration damping and long-lasting mechanical stability. All critical electrical control components are sourced from Schneider, France’s leading manufacturer, ensuring dependable operation, high safety standards, and an extended system lifespan.

,

For enhanced productivity, we offer optional Taiwanese hydraulic or servo indexing turrets, known for their sturdy construction and rapid tool change capabilities, ensuring high precision and reliability. Our hydraulic components are procured from premium Taiwanese suppliers, guaranteeing consistent performance tailored to your specific production needs.

,

Note: All configurations can be adjusted and customized to fit your unique machining requirements, production strategies, and budget. Our commitment is to provide the most cost-effective, tailored solutions for your factory.

,
Send Inquiry

Product Description

Structural Features
◆
The spindle system features a high-precision, high-rigidity cartridge-type design, specifically optimized for heavy-duty machining. The structural configuration utilizes a 'front-three-rear-two' (triplex-front, duplex-rear) arrangement of imported precision-grade bearings. Combined with a direct-drive spindle servo motor, the system achieves exceptional rotational accuracy, dynamic rigidity, and speed stability, ensuring superior machining quality and high efficiency even under heavy cutting conditions.
◆
The machine bed is constructed from premium monolithic cast iron using a resin-sand precision casting process with a 30° slant layout. The internal structure is reinforced with high-rigidity ribbing, significantly enhancing the machine's natural frequency and damping characteristics. This design offers outstanding anti-vibration performance. Furthermore, the slanted bed provides the operator with an unobstructed view and easier access, while ensuring gravity-assisted chip removal for enhanced efficiency and workplace safety.
◆
The feed mechanism operates through the synergy of high-rigidity linear guideways and precision pre-tensioned ball screws. Both X and Z axes are directly driven by high-performance servo motors via flexible couplings, eliminating backlash and enhancing transmission efficiency. An intelligent centralized lubrication system provides forced lubrication and cooling to the guideways and ball screws, supporting rapid traverse rates of up to 30 m/min while maintaining exceptional positioning accuracy and thermal stability.
◆

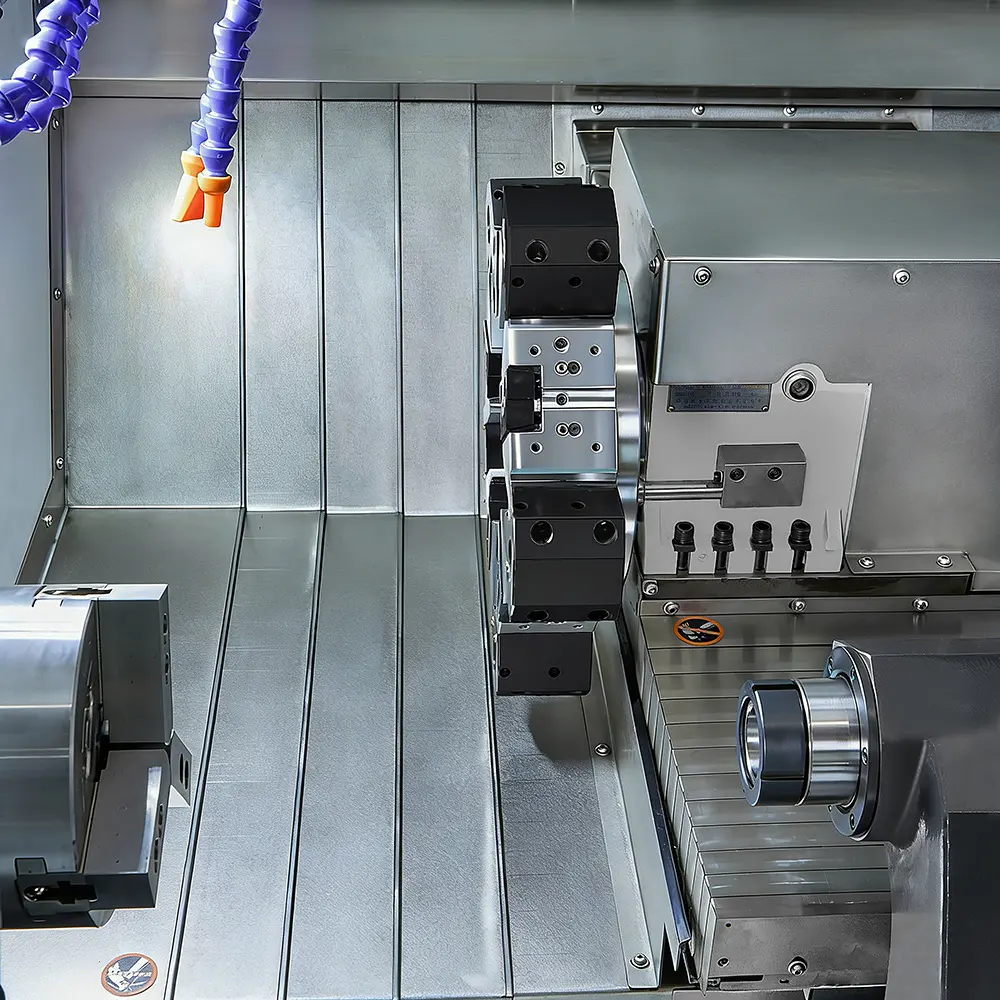

Hydraulic system integrates premium components, including variable displacement pumps, hydraulic motors, and solenoid valves, complemented by a high-efficiency air-cooled radiator. This setup ensures low-noise operation and precise oil temperature control, guaranteeing reliable hydraulic movements. The machine offers a choice of hydraulic or servo indexing turrets, featuring a robust construction with rapid tool changes (0.3 – 0.5 sec) and bi-directional shortest-path indexing. This configuration is specifically engineered to meet the rigorous demands of heavy-duty disk-type workpiece machining.
◆
The tailstock is hydraulically driven, enabling automatic quill extension and retraction. It offers superior rigidity and ease of adjustment, significantly expanding the machine's capability for processing long-shaft workpieces.
◆
Machine is equipped with an aesthetic fully-enclosed protection guard, providing excellent waterproof and chip-proof performance. The sliding doors operate smoothly and are integrated with safety interlocking protection. This design not only enhances the machine's overall appearance but also provides comprehensive safety assurance for both the operator and the equipment.
Product Display

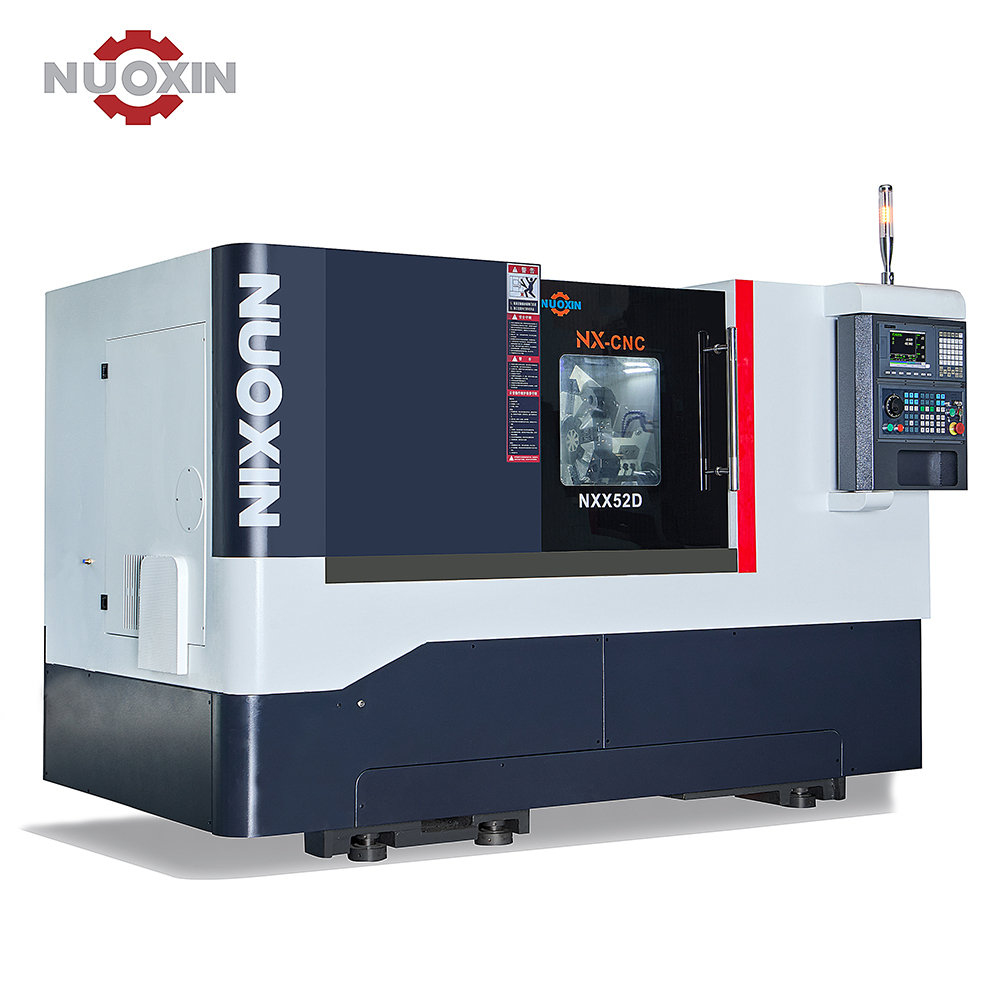

NXX-52D

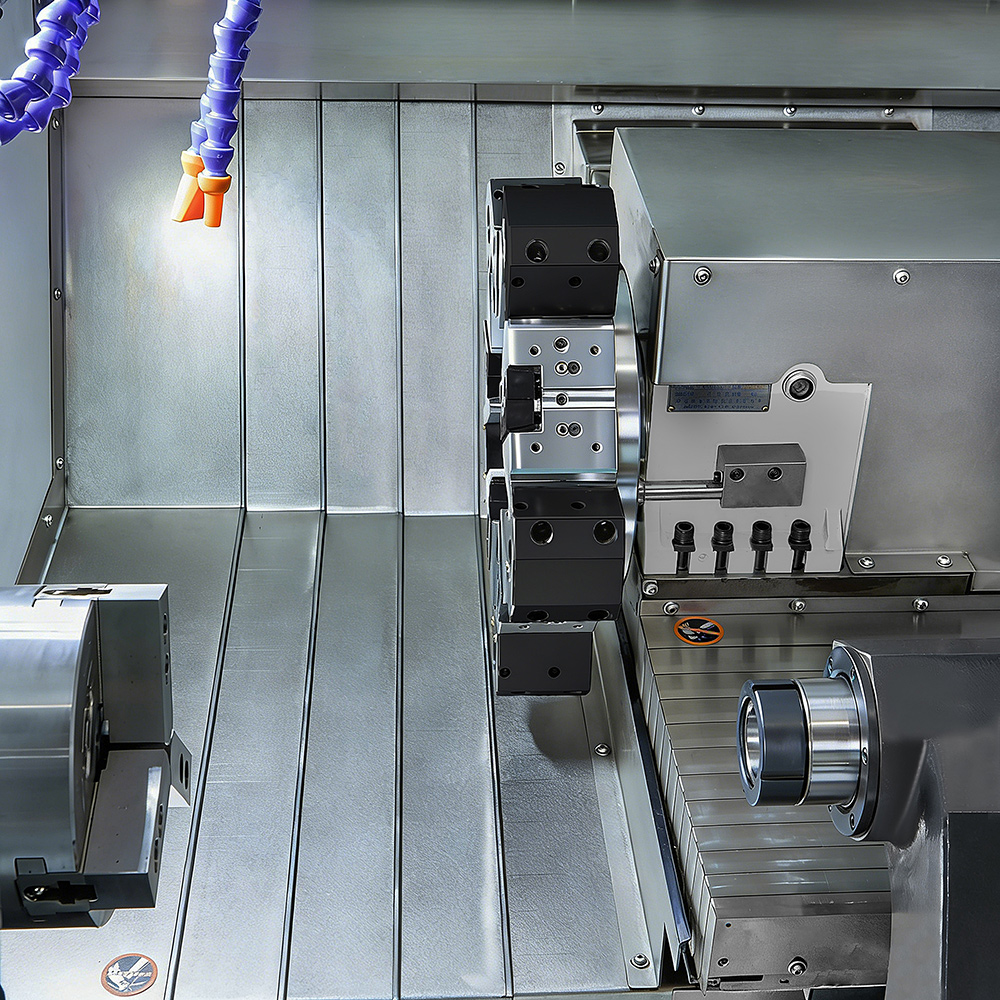

NXX-52D1
Key Technical Specifications
Item Unit NXX-46D NXX-52D
Max. Swing Over Bed mm Φ450 Φ450
Max. Machining Length mm 500 500
Max. Swing Over Turret Carriage mm Φ220 Φ220
Max. Turning Dia. (Disk / Shaft) mm Φ450/Φ220 Φ450/Φ220
Spindle Bore Diameter mm Φ56 Φ62
Max. Bar Capacity mm Φ45 Φ51
Spindle Speed Range r/min 0-4000 0-3000
Spindle Speed Steps Step CV CV
Spindle Nose   Flange Type A2-5 Flange Type A2-5
Main Motor Power (Spindle) Kw 7.5 11
Bed Slant Angle ° 30 30
X-axis Rapid Traverse Rate m/min 30 30
Z-axis Rapid Traverse Rate m/min 30 30
Max. X-axis Travel (Single Direction) mm 500 500
Max. Z-axis Travel mm 550 550
X/Z Axis Servo Motor Power mm 1.3 1.3
Tailstock Quill Diameter mm Φ80 Φ80
Tailstock Quill Travel mm 80 80
Tailstock Spindle Taper MT MT4 MT5
Tailstock Body Travel (Manual/Hydraulic) mm 480 480
Spindle Run-out (Radial/Axial) mm ≤0.003 ≤0.003
Spindle Face Flatness / Spindle Nose Run-out mm ≤0.01/Φ100 ≤0.01/Φ100
Repeatability Accuracy X-axis mm ±0.0025 ±0.0025
Z-axis mm ±0.0025 ±0.0025
Standard Turret Type   160-10 Station Hydraulic Indexing Turret 160-10 Station Hydraulic Indexing Turret
Max. Number of Tools pcs 10 10
Tool-to-Tool Indexing Time S 0.5 0.5
Tool Size O.D. Tool mm 25×25 25×25
Boring Bar Diameter mm Φ32 Φ32
Total Power Consumption Kw 11 14.5
Machine Weight (Approx.) kg 3300 3500
Overall Dimensions (L×W×H) mm 2700×1810×1880 2700×1810×1880
Frequently Asked Questions
Q What is the difference between the NXX-46D and NXX-52D CNC slant-bed lathe models?
A The primary differences lie in the spindle bore diameter (Φ56mm vs. Φ62mm), max. bar capacity (Φ45mm vs. Φ51mm), spindle speed range (0–4000 r/min vs. 0–3000 r/min), main motor power (7.5 Kw vs. 11 Kw), and total power consumption (11 Kw vs. 14.5 Kw). The NXX-52D is suited for larger diameter workpieces requiring higher torque, while the NXX-46D offers higher spindle speed for smaller parts.
Q What is the significance of the 30° slant bed design on these CNC lathes?
A The 30° slant bed design provides several key advantages: it enables gravity-assisted chip removal to keep the work area clean, offers the operator an unobstructed view of and easier access to the cutting zone, and enhances the machine's rigidity and vibration damping characteristics thanks to the reinforced internal ribbing structure — all contributing to improved machining quality and operator safety.
Q How fast is the tool indexing on the standard hydraulic turret, and how many tools can it hold?
A Both the NXX-46D and NXX-52D are equipped with a 160-10 Station Hydraulic Indexing Turret that holds up to 10 tools. The tool-to-tool indexing time is 0.5 seconds, with bi-directional shortest-path indexing to minimize non-cutting time and maximize overall machining efficiency.
Q What positioning and repeatability accuracy can be expected from the X and Z axes?
A Both the X-axis and Z-axis achieve a repeatability accuracy of ±0.0025 mm on both models. This high precision is made possible by the combination of high-rigidity linear guideways, precision pre-tensioned ball screws, direct-drive servo motors, and an intelligent centralized lubrication system that maintains thermal stability during operation.
Q Is the tailstock on the NXX-46D / NXX-52D manually or hydraulically operated?
A The tailstock is hydraulically driven, enabling automatic quill extension and retraction. With a quill diameter of Φ80mm, a quill travel of 80mm, and a body travel of 480mm, it provides superior rigidity and ease of adjustment — significantly expanding the machine's capability for processing long-shaft workpieces with minimal operator effort.
Q What safety and protection features are included with these CNC lathes?
A Each machine is fitted with a fully-enclosed aesthetic protection guard offering excellent waterproof and chip-proof performance. The smooth-operating sliding doors incorporate safety interlocking protection to prevent accidental access during machining. This comprehensive enclosure design protects both the operator and the machine, while also enhancing the overall appearance of the equipment on the shop floor.
